Armstrong
Armstrong Metalworks Modular Beams
Metal Ceiling Systems

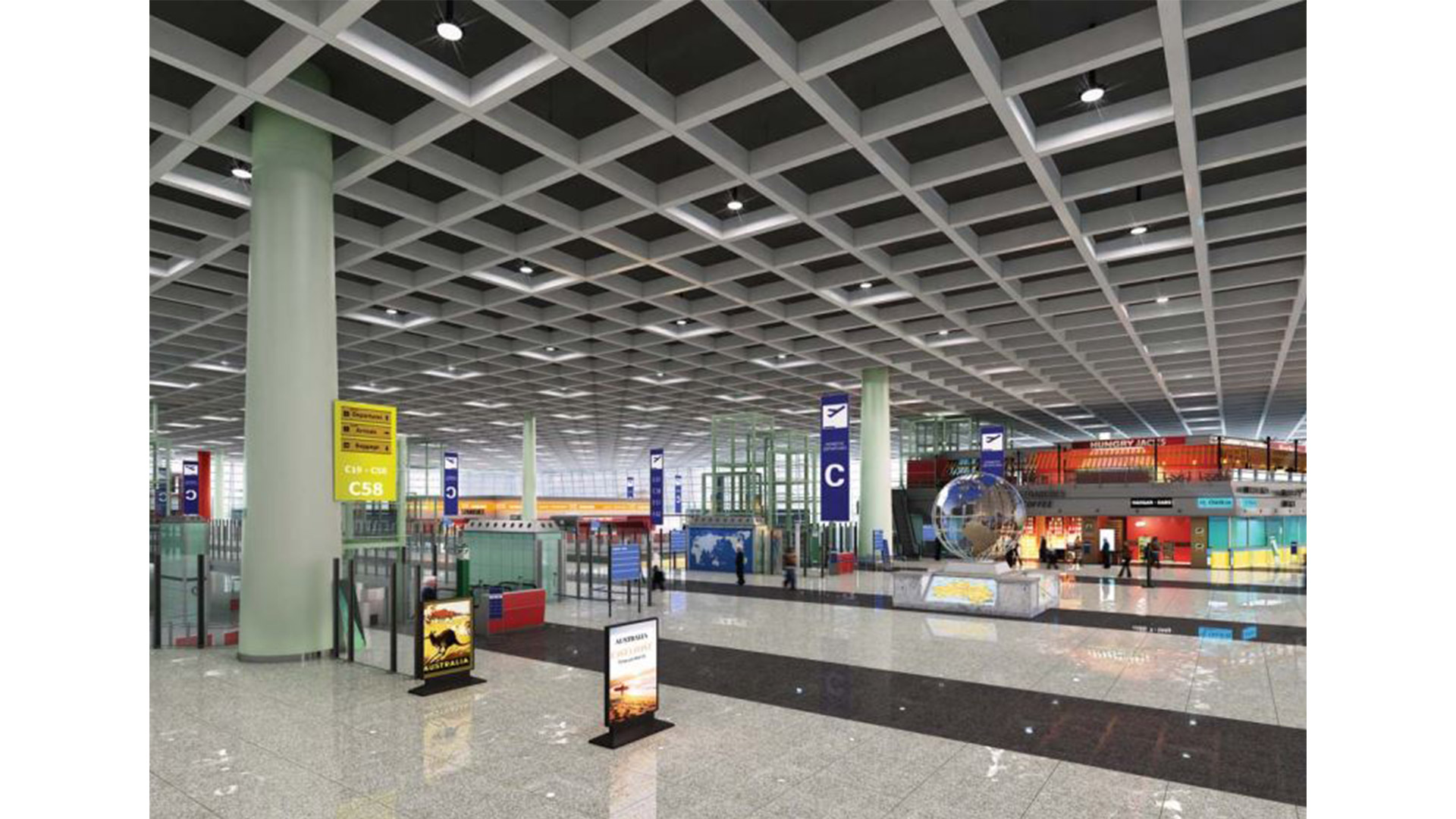

The Modular Beam System is completely flexible, offering an endless range of module sizes – both square and rectangular in design. Module sizes as small as 300mm x 300mm or larger than 2000mm x 2000mm are possible, as the system is made up of a Primary Beams that can be installed at any spacing required, with Secondary (Cross) Beams cut to size to suit your select module eg. 600x600, 1200x1200, 1350x450, 3000x1500mm etc.
- Suitable for
- Ceilings, Metal, Commercial, Education, Office, Interior, Classroom, Acoustic, Retail, Suspended, Decorative, Council, Hospitality, Feature Products, Hall / Conference, Non-Structural, School, Specialty, Entrance / Lobby, Transport
- Standard beam profiles
- 100x25mm and 100x50mm
- Material
- Extruded Aluminium
- Surface finish
- Powdercoated Satin White with custom colours and Wood Effects available on request.
- Module sizes
- Beams to be installed as per specification
- Fire performance
- Conforms with NCC BCA Spec C1.10 as tested in accordance with AS 5637.1: 2015 – Group 1, ISO 5660 – Group 1-S.
