- Around 300mm long for cables and cable trays through walls.
- 600mm long for most other services and orientations
- Will provide up to 120 minutes insulation on various types of services when used in partnership with other Promat
- Firestopping products.

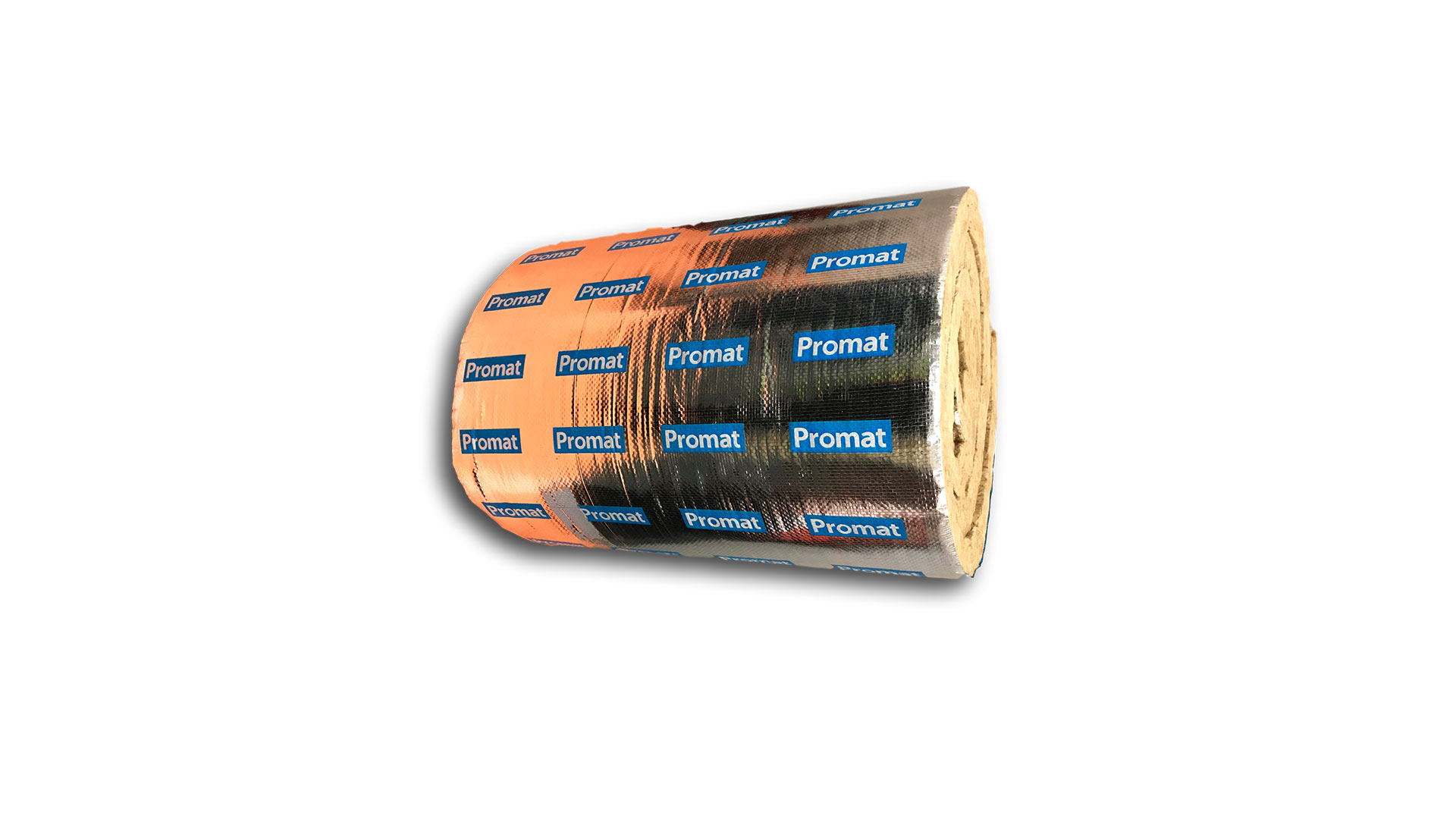

- Sold as a roll to be cut to size on site.
- Tested to AS1530.4 & AS4072.1
- For metal pipes in walls and all services through slabs. A length of 600mm is required using the PROMASEAL® SupaWrap. Generally, the requirement is for application to both faces of the element. However, for slabs there are selected approvals available for application to the top side only.
- Cable trays and cables while not as highly conductive as metal pipes will still transfer heat to the unexposed side of a fire resisting element. In these cases the penetrating element must be protected so as to not transfer this heat and possibly contribute to fire spread. The advantage of the PROMASEAL® SupaWrap product is that the extension of the wrap is only for 300mm* (depending on wall thickness) from the face of the wall as opposed to other solutions that can be as long as 800mm.
