Specification

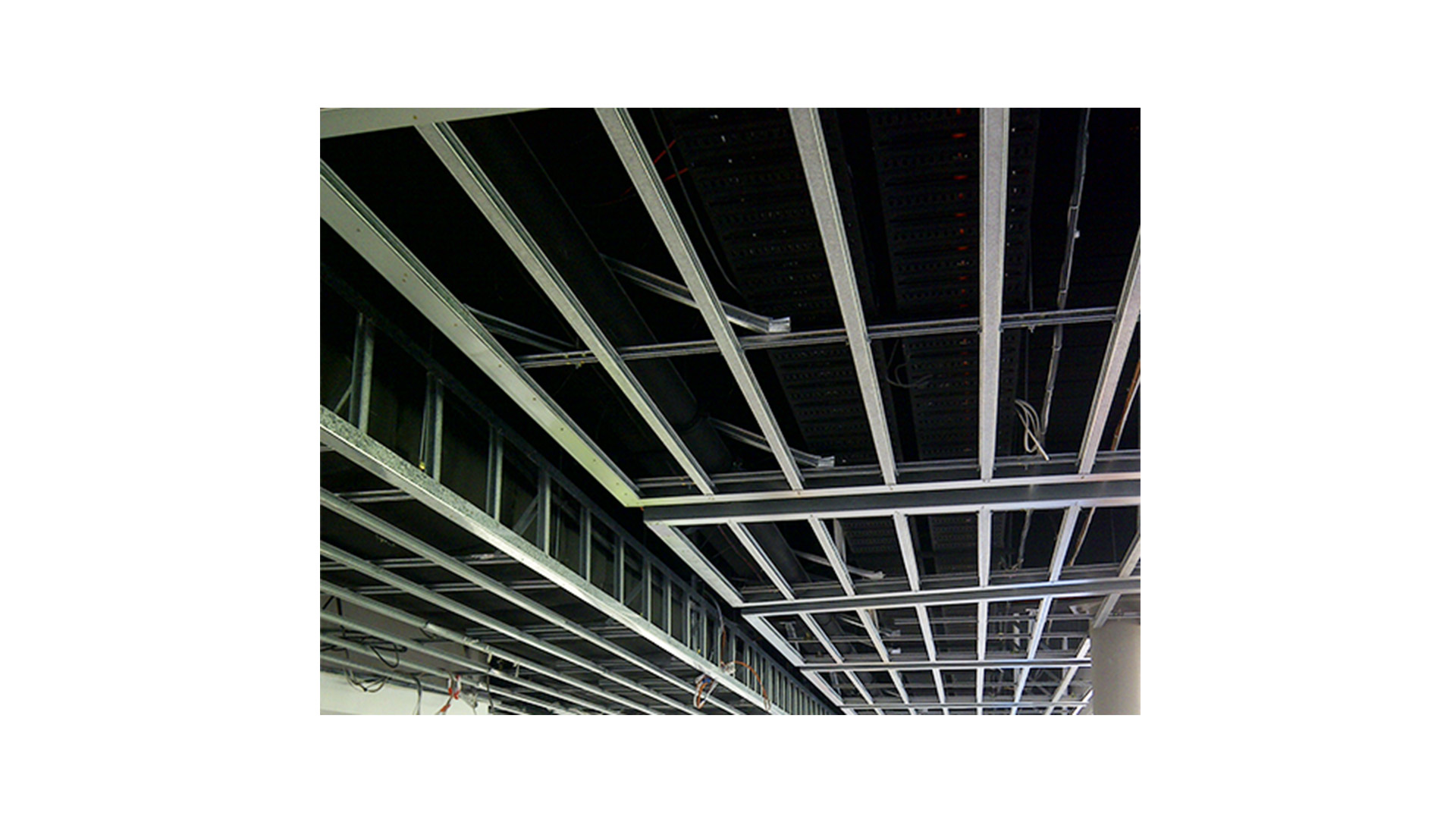

Studco Concealed Suspended Ceiling Systems - Are engineered to provide a flexible and secure system for a building board flush finish.

Benefits of Studco Concealed Systems:

  • Components are manufactured from galvanised steel, designed for safe handling, and easily clipped together to form gridwork where building boards can be simply fixed.
  • Components such as battens, furring channels and top cross rail allow for a range of loading options and ceiling spans.
  • Studco Concealed Ceiling Systems can be used for non-fire-rated or fire-rated applications and have been designed to meet the relevant Australian/New Zealand standards.

Acoustic Ceiling Systems - Studco acoustic systems cater for a variety of applications; from direct fix SlimCeil applications to carefully engineered theatre ceilings. Dedicated to the highest performance, Studco works with many Acoustic Consultants and reputable Universities to ensure our acoustic assemblies will perform to the requirements of our clients and engineers. From our range of world leading Resilmount Isolation Mounts; the Studco technical team have a stock or custom acoustic solution to meet your projects needs.

Studco Concealed Direct Fix - The Studco Concealed Ceiling System includes a range of options for direct fixing of furring channels and battens in ceiling applications up to 180mm. Studco's range of concealed direct fix ceiling systems includes the SlimCeil low clearance ceiling system and is the ideal solution for compact ceiling cavities. The Studco SlimCeil ceiling system consists of a C-channel section and a series of four brackets designed to provide adjustable stand-off points for fixing the channel. The SlimCeil bracket range provides an overlapping series that covers ceiling cavities from 37mm through to 108mm.

Documents

  • Studco Product Catalogue
    pdf
  • Studco Wall & Ceiling Design & Installation Manual
    pdf
