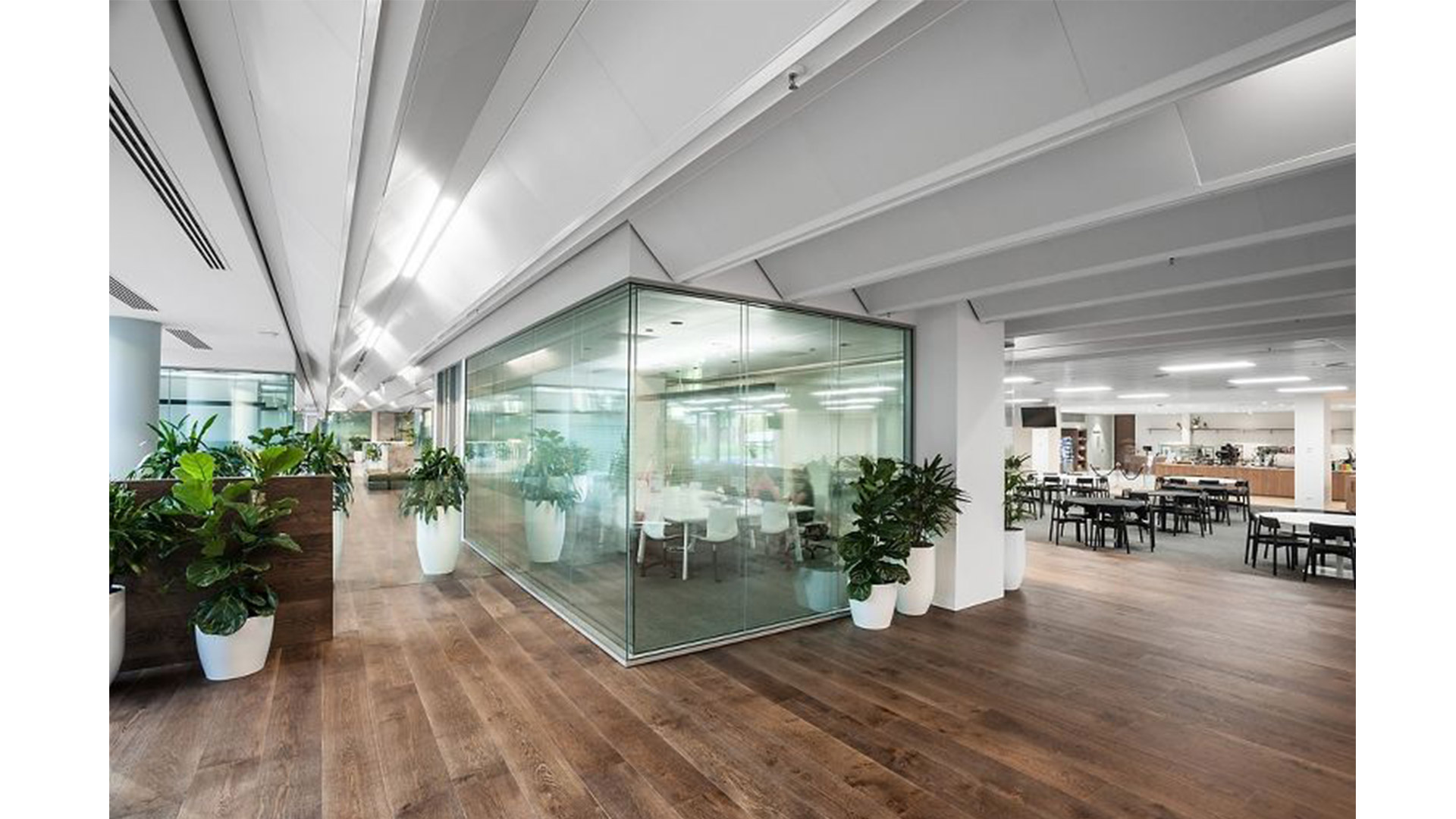

Armstrong Metalworks R-H200 Hook On. Sophisticated and simple, Armstrong MetalWorks R-H200 is the most versatile custom metal ceiling system, perfect for a wide range of commercial applications.
- Suitable for
- Ceilings, Metal, Commercial, Education, Office, Interior, Industrial, Retail, Warehouse, Hospitality, Feature Products, Mixed Use, Hall / Conference, Non-Structural, School, Specialty, Entrance / Lobby, Acoustic, Transport
- Panel material
- Galvanised steel sheet (aluminium on request) or Mesh (see Mesh brochure for design options).
- Surface finish
- Powdercoated Satin White (MA124A). Custom colours and Wood Effects available.
- Edge detail
- Square edge
- Panel junction
- 3mm black gasket on one long and one short side
- Acoustic inlay
- Black non-woven acoustic fleece as standard. Other options available on request including B15 or B19 Mineral Infill with NRC up to 0.70 and CAC up to 40dB.
- Typical module size
- As above. Other sizes on request up to Max. length 3000mm and Max. width 1200mm (stiffeners may be required).
- System weight
- 8.07kgs/m2
- Perimeter solutions
- Range of standard Axiom aluminium wall angles, trims, pelmets plus custom bulkheads and fully integrated drywall solutions available.
