Pyrotek

Pyrotek Sorberbarrier

Acoustic

Sorberbarrier is a unique composite noise control product that offers both excellent noise transmission loss and high noise absorption. It was developed to meet market requirements for reducing noise in industrial and domestic enclosure, OEM and marine markets. Sorberbarrier combines the superior performance of the flexible mass barrier, Wavebar® together with the high absorption properties of Sorberfoam™. Wavebar is laminated to the Sorberfoam layer to alter the natural absorption curve enhancing sound absorption in mid to high frequencies. Sorberfoam is applied by using a sophisticated process that optimises flow resistivity and maximises sound absorption. With a black finish and a more discreet look. The high performance of Sorberbarrier is achieved by its unique construction. Placing the mass barrier between two layers of absorbing foam, keeps the barrier separate from the structure to which it is bonded, allowing it to remain flexible at all times. This increases the noise transmission loss.

Documents

Suitable for: Acoustic, Specialty, Transport, Industrial, Insulation, Mechanical Services, Non-Combustible

Specification

Multifunction product: an absorber and barrier in one
Fire-resistant facing to meet safety requirements
AGC facing protects the foam from mechanical stress, dirt, oil
and liquid ingress
No ozone-depleting substances generated during
manufacture
Free from formaldehyde, phenolic resins and irritating fibres
Engineered to resist degradation (foam rot) more than traditional acoustic foam
Low spread of flame surface
Quick and easily installed in awkward places
Easy to cut, adhere or mechanically fasten into position
Matching self-adhesive tape or sprayable coating for sealing joints and edges of the foam
Can be constructed with other absorption products such as Sorbermel

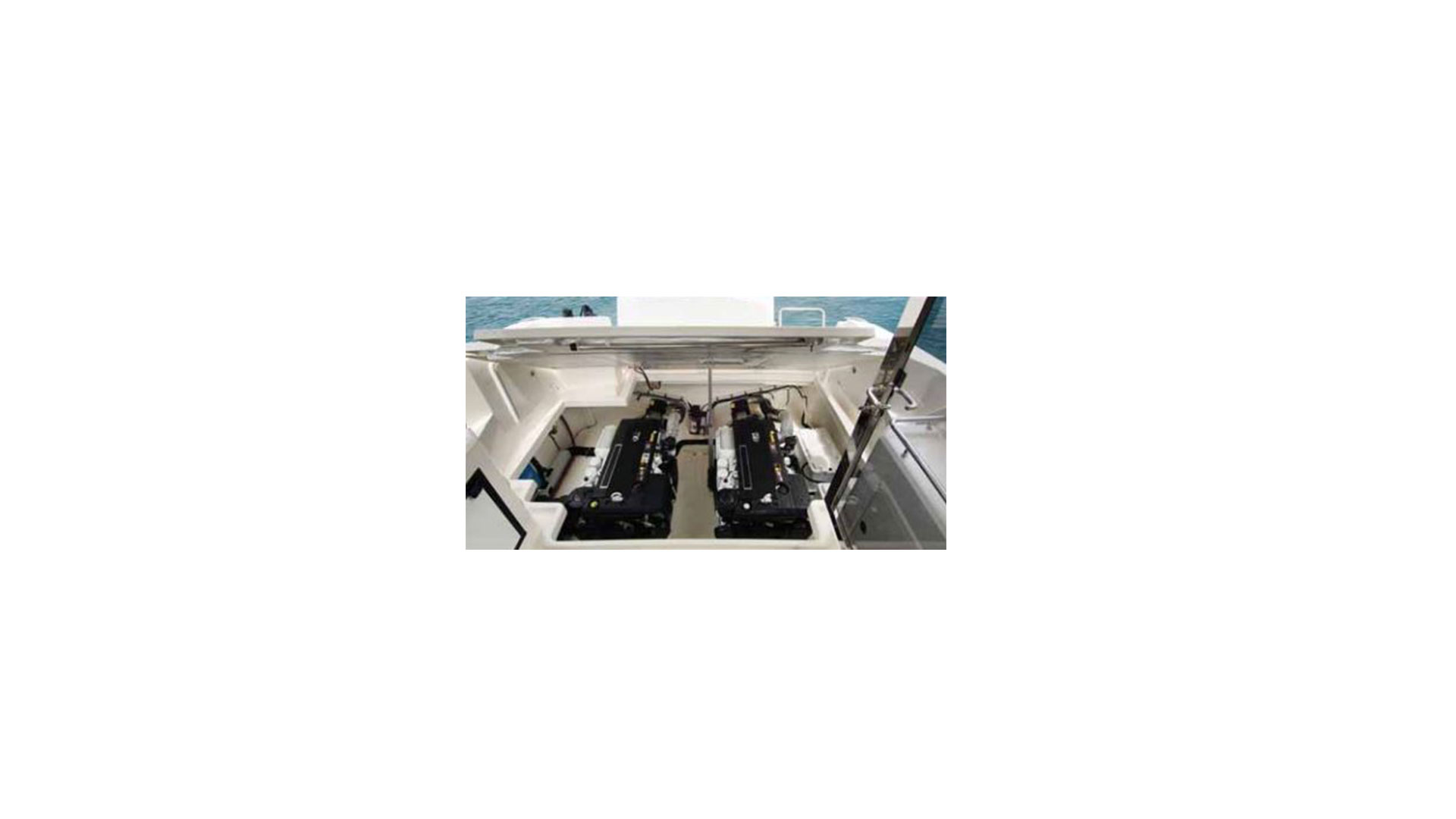

Engine rooms in boats under CE Marine Survey
Acoustic and thermal insulation for air conditioning ductwork
Acoustic insulation for plenum areas
Power generation units and containerised generator sets
Machinery and equipment enclosures
Car, boat, truck and bus engine compartment, firewall and bonnets

Documents

Sorberbarrier AGC Technical Data Sheet 485IP
pdf
Download
