TECHNICAL SPECIFICATIONS:

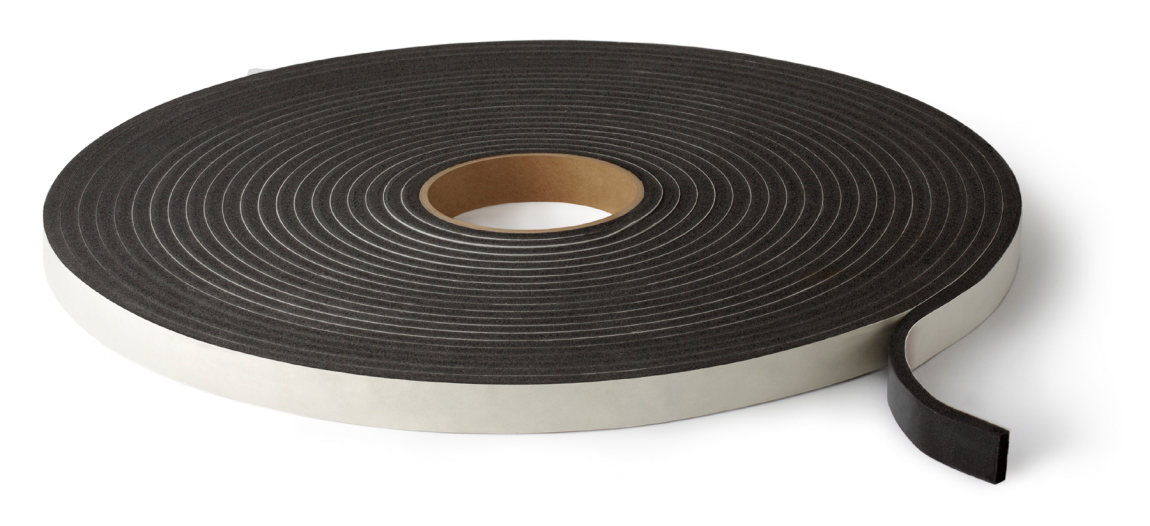

Backing Material Medium density closed cell polymeric foam
Adhesive Type Acrylic
Density 240 kg/m3
Tensile Strength (ASTM D412) 620 kPa
Elongation (ASTM D412) 260%
Hardness – Shore 00 (ASTM D2240) 35
Compression Deflection @ 25% (ASTM D1056) 41 kPa
Compression Set @ 50% (ASTM D1056) 12% loss from original height
Water Absorption 1.2%
Thermal Conductivity (K factor)(ASTM C518) 0.043 W/m K
Service Temperature -40°C to +105°C
Application Temperature +10°C to +43°C
Colour Available Black
THICKNESSES: 1.6mm / 3.2mm / 4.8mm / 6.4mm / 9.5mm / 12.7mm
STORAGE: Cartons should be sealed and stored away from direct sunlight
at temperatures between 15°C to 30°C
PRODUCT PROPERTIES:
- No out-gassing at ambient temperature
- Does not go brittle or exhibit loss of properties over time and wide temperature ranges
- No plasticizer migration
-Maintains physical properties under various sterilisation conditions
- Totally unaffected by harsh chemicals such as petrol, oil, hydraulic or brake fluid, alcohol, antifreeze and most acids
-Resistant to fire, UV, fungi, weather and oxidation
